Compared to LCD products, Retail Store Shelf Labels can also precisely display data and images, but consume a significantly lower energy, fueling ESG for retail stores and corporations. Shelf Price Tags are equipped with build-in battery, which is small button battery, that sufficiently support the system to run for years up to one decade
Electronic Shelf Labels, is a modern IoT technology widely employed as digital solutions in retail stores, such as supermarkets, digital stores, cosmetic stores & pharmacies, and especially grocery stores. With 8 years of experiences in development and commercialization of electronic price tags, BOWTZ has installed electronic prices tags for a wide range of retailers, exporting to more than 30 countries worldwide.
E ink tags or electronic price tags are made of e ink or e paper technology that has been widely known as e-paper readers (such as Kindle book) to replace paper books. ESL tags is another product especially suitable to employ the technology. Electronic price tags has several characters, the most important one is low consumption. Electronic Price tags does not consume energy when the displayed content no need to be replaced. When the content on ESL tags need to change, for example prices, it only consumes a very least amount of energy. Compared to LCD instant electricity flow, E ink Tags consumes about a 1/330000. That's why the total system of electronic price tags can run up to a decade, 8 to 10 years. There is build-in battery in the ESL tags, and battery can be replaced when run out. The screen of E ink tags will decrease in color display, after use for 5 years, but will stand for another 5 years to be completely replaced by new electronic price tags.

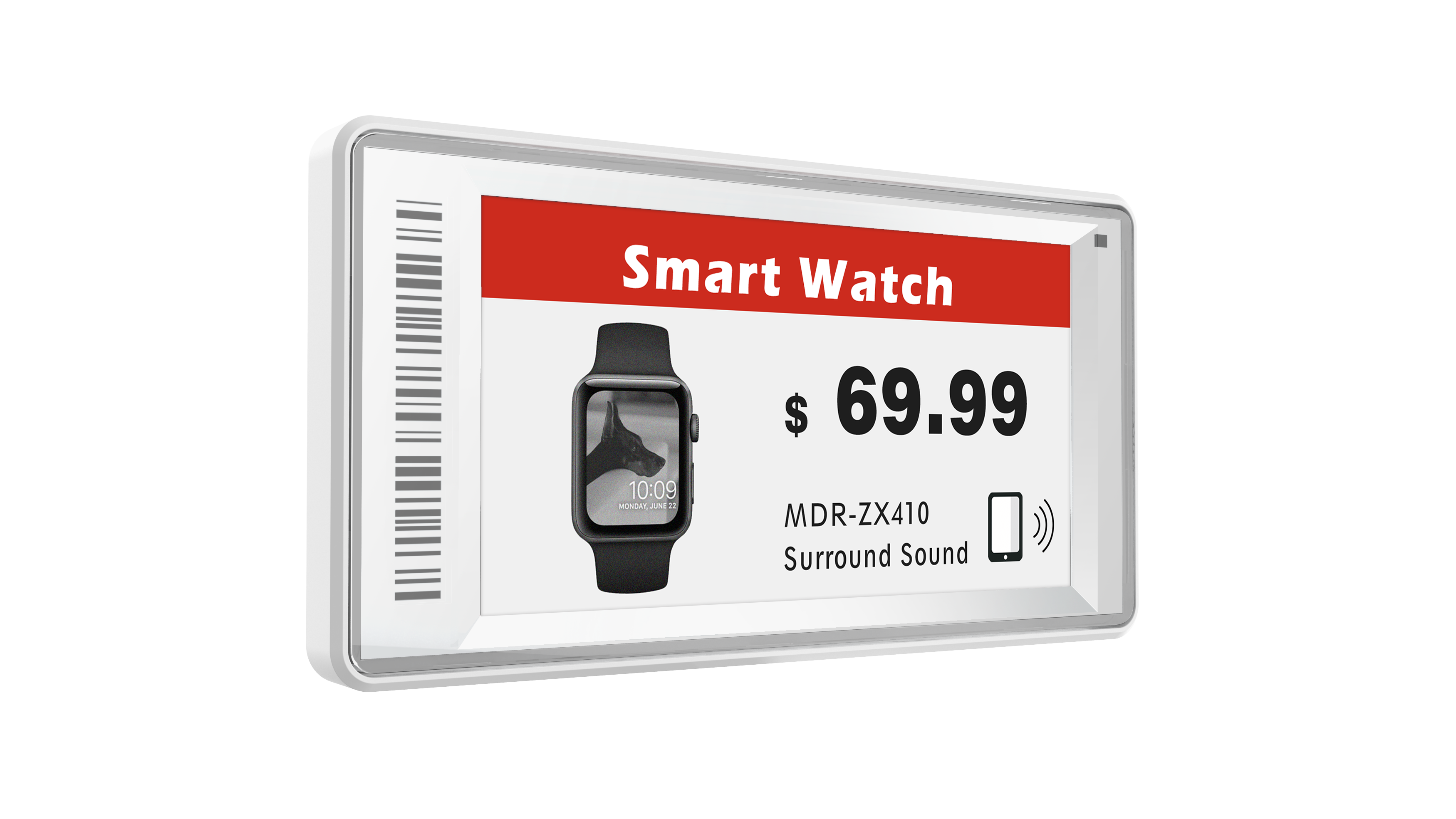

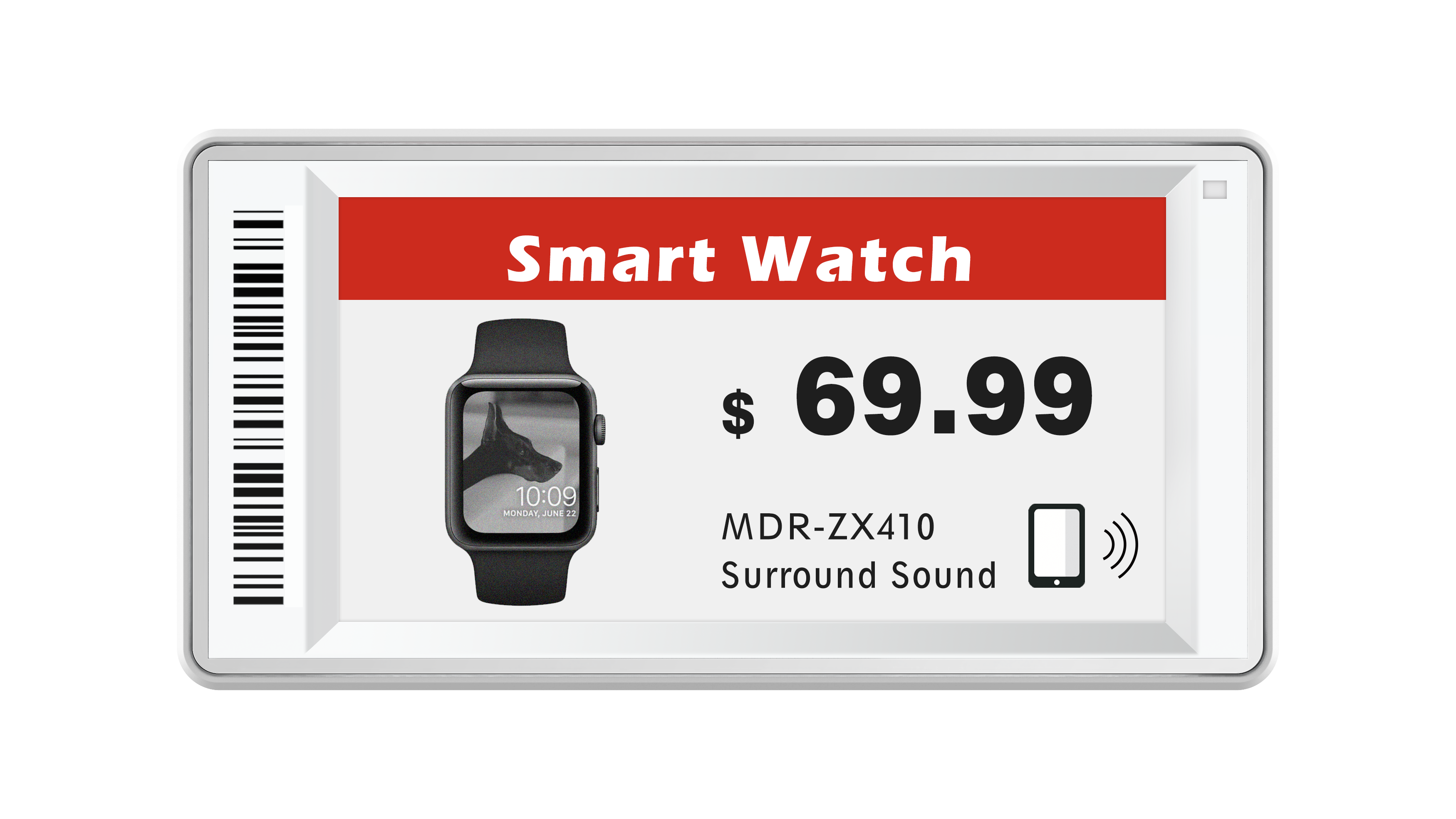

BOWTZ Digital E ink Tags ENDOR 2.13
BOWTZ e ink tags or electronic price tags are widely employed in supermarket, to automatically control data displayed of products on sell. Among all models, 2.13 inch electronic e ink tags or ESL tags is the most popular for large supermarkets. The small E ink tags are suitable for narrow space on shelf of single sku, at the same time it displays a good effect. As the most cost-effective choices. The 2.13 ESL tags has a freezing E ink tags for -30 degree environment in freezer and cold storage. The freezing ESL tags only display black and white colors.
The e ink tags display red, black and white colors. Red color is widely used in promotion.
Product Features
Build-in buttton battery replaceable
Battery lifetime from 5 to 10 years
Display sizes 2.13 inch
Low energy consumption
Display colors red black white
Main Parameter
| Product code | ED0213 |
| Dimensions mm | 69.3*35.8 |
| Active display area mm | 59.2*29.2 |
| Resolution pixel | 250x122 |
| Pixel density | DPI 130 |
| Display color | B/W,B/W/R |
| Battery | 2xCR2450 |
| Battery life | 8 years (4 update/day) |
| Working temperature | 0~40℃ |
| LED | 7 Colors |
| NFC | For option |
| ESL operating frequency | 2405~2480Hz |
| Wireless firmware update | Available |
Product Details
